Plastic Extruder | Profile Extruder | Profile Extrusion Line
Plastic Extruder | Profile Extruder | Profile Extrusion Line

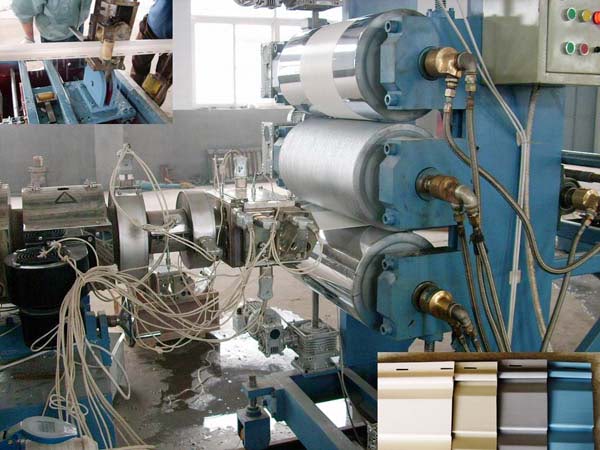

Profile Extrusion Line for Wood Plastic Composite (WPC), PVC Gusset Plate, PVC Wall Panel, PVC Hanging Panel, Bamboo Fiber Integrated Wall Board, PVC Windows and Doors Profile and so on.
Profile extrusion is the process of making continuous shapes of plastic (not including sheet and film) by extrusion. Molten polymer is forced through a metal die cut into the linear shape of the desired finished article (channel, tube, etc.).
The main components of extrusion equipment: Extruder — Profile Extrusion Die — Cooling and Forming Platform — Tractor — Cutting
The extruder models are: SJSZ65 conical twin screw extruder, SJSZ80 conical twin screw extruder, SJ-65 extruder, SJ-75 extruder, SJ-90 extruder, SJ-120 extruder
Profile extrusion die: Dies of different shapes can be replaced to produce different products.
Cooling and shaping platform: vacuum cooling and shaping, immersion cooling.
Tractor: The crawler tractor (with 2 rubber-rubber blocks) is mainly used for the traction of profiles.
Cutting machine: Cut the produced profiles to a fixed length and enter the unloading platform
The extrusion line is equipped with a fully automatic screw feeder.
