Solution of Single Wall Heat Shrink Tubing Production Line
Tubing Extrusion&Expansion
0.8~180/40sizes, 30tons/month
Production Process:Extrusion—Irradiation(irradiation crosslinking)—Expansion-Packing
Production Process:Extrusion(organosilane crosslinked polyethylene)—Water-bath Heating —Expansion-Packing

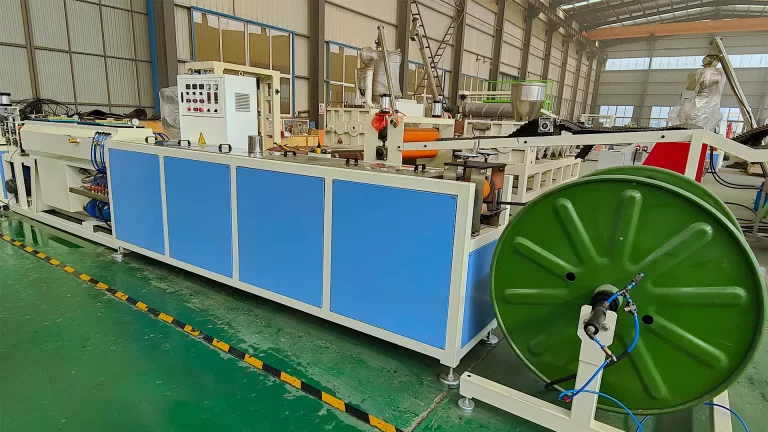

Extrusion Line
SW-45, for 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 9.0, 10/15sizes
SW-55, for 11, 12, 13, 14, 15, 16, 17, 18, 20/9sizes
SW-65, for 22,25, 28, 30, 35, 40, 45, 50, 60/9sizes
SW-75, for 70, 80, 90, 100, 120, 150, 180/7sizes
Expansion Line
SW-10-4, for 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 9.0, 10/15sizes
SW-20-3, for 11, 12, 13, 14, 15, 16, 17, 18, 20/9sizes
SW-60-2, for 22,25, 28, 30, 35, 40, 45, 50, 60/9sizes
SW-180-1, for 70, 80, 90, 100, 120, 150, 180/7sizes
SW-45 Extrusion Line
for 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 9.0, 10/15sizes
Feeder+Dryer/ 1 SET
Extruder, SJ-45/ 1 PC
Extrusion Mold Body/1 PC
Vacuum Cooling Water Tank/1 PC
Tractor/1 PC
Plying&Winding Machine/1 PC(Follow-up)
Branching Machine/1 PC (Follow-up)
SW-55 Extrusion Line, for 11, 12, 13, 14, 15, 16, 17, 18, 20/9sizes
Feeder+Dryer/ 1 SET
Extruder, SJ-55/ 1 PC
Extrusion Mold Body/1 PC
Vacuum Cooling Water Tank/1 PC
Tractor/1 PC
On-line Winding Machine/ 1 PC
SW-65 Extrusion Line, for 22,25, 28, 30, 35, 40, 45, 50, 60/9sizes
Feeder+Dryer/ 1 SET
Extruder, SJ-65/ 1 PC
Extrusion Mold Body/1 PC
Vacuum Cooling Water Tank/1 PC
Tractor/1 PC
On-line Winding Machine/ 1 PC
SW-75 Extrusion Line, for 70, 80, 90, 100, 120, 150, 180/7sizes
Feeder+Dryer/ 1 SET
Extruder, SJ-55/ 1 PC
Extrusion Mold Body/1 PC
Vacuum Cooling Water Tank/1 PC
Belt Tractor/1 PC
On-line Winding Machine/ 1 PC
SW-10-4 Expansion Line,
for 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 9.0, 10/15sizes
Traction+Heating+Mold Platform+Cooling+Water Pump+Vacuum Pump&tank+Electrical Control
SW-20-3 Expansion Line, for 11, 12, 13, 14, 15, 16, 17, 18, 20/9sizes
Traction+Heating+Mold Platform+Cooling+Water Pump+Vacuum Pump&tank+Electrical Control
SW-60-2 Expansion Line, for 22,25, 28, 30, 35, 40, 45, 50, 60/9sizes
Traction+Heating+Mold Platform+Cooling+Water Pump+Vacuum Pump&tank+Electrical Control
SW-180-1 Expansion Line, for 70, 80, 90, 100, 120, 150, 180/7sizes
Traction+Heating+Mold Platform+Cooling+Water Pump+Vacuum Pump&tank+Electrical Control
***SW-X-Y, 10 is expander mold, Y is quantity of expanders, This means that an expansion line can expand Y tubes at the same time
WOLJIA designs and manufactures complete extrusion and expansion lines for producing (PVC, PE, PVDF, PTFE, fluorine rubber, EPDM, FEP, etc.) Heat Shrink Tubing including pelletizers, extruders, expanders, tooling, and all auxiliary machines.
WOLJIA can offer you the most suitable product solution based on your demands, customize your heat shrink tubing production line.
